About Us

Vertically Expanding Tiny Home Porototype

Overview

We build two-story, full ceiling height (7’-0” on both floors), tiny homes that expand vertically at the flip of a switch. Our tiny homes expand four (4) feet up in order to give you a 7'-0" ceiling height on the second floor. We offer four (4) sizes:


  • 204 ft.² (12’-0” x 8'-6")
  • 272 ft.² (16’-0” x 8'-6")
  • 408 ft.² (24’-0” x 8'-6")
  • 544 ft.² (32’-0” x 8'-6")


All are 13'-6" tall (17'-6" when expanded)


NO MORE LOFTS!!! Both the first and second floors have 7’-0” ceiling heights


Infrastructure

  • Steel Structural Insulated Panel (SIP) walls, ceiling, and floors
  • R-17 insulation in all walls, ceiling, and floors
  • 50 AMP 240 V and 30 AMP 120 V RV plugs, for city power hook up
  • Off-grid solar power via 330 W solar panels
  • 500 Ah @ 48 V (24,000 Wh) of power storage
  • City water hook-up
  • Fresh/waste water storage via 100 gallon tanks
  • Rainwater harvesting system built into the roof (fills tanks when it rains)
  • Thirty (30) gallon  water heater
  • (optional) R-24 insulation in all walls, ceiling, and floors
  • (optional) On-board 8,750 W gasoline power generator
  • (optional) Three (3) stage and UV water filtration system creates potable water




Features/Amenities

  • Full ceiling height (7’-0”) on both floors; NO MORE LOFTS!!!
  • Meets HUD (U.S. Department of Housing and Urban Development) manufactured home standards
  • Meets LEED (Leadership in Energy and Environmental Design) certification requirement
  • Meets RVIA (Recreation Vehicle Industry Association) standards
  • 17 ft.² x 11'-6" tall tongue mounted V shape closet
  • Lightweight, all of our tiny homes are under 10,000 lbs.
  • No trees are harmed in the construction of our structures
  • (optional) Under bed walk-in-closet
  • (optional) Desk in under bed walk-in-closet
  • (optional) Integrated intelligent monitoring system
  • (optional) Cellular wi-fi


All proceeds go to a support a local 501(c)(3) non-profit that houses disabled Veterans

 ALL PROCEEDS FROM THE SALES OF OUR POP-TOP TINY HOMES GO TOWARDS BUILDING PERMANENT HOUSING FOR DISABLED VETERANS

First Floor

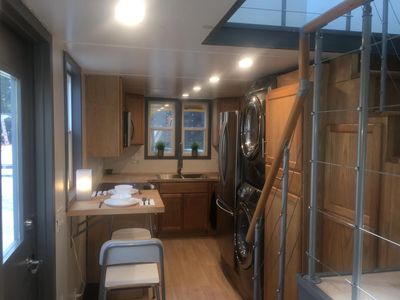

24'-0" Pop-Top Tiny Home Kitchen

Kitchen

  • 7'-0" Ceiling Height
  • All LED lighting
  • Full size appliances
  • Large/deep one (1) or two (2) compartment sink
  • Shaker style cabinets and pantry
  • Fold-down table for two (2)
  • 38 SEER mini-split HVAC (heating, ventilation, air-conditioning)
  • (optional) In-sink disposal
  • (optional) Full-size stainless steel Samsung intelligent appliances (washer, dryer, refrigerator/freezer, induction cooktop/convection oven, over-the-range microwave, and dishwasher)

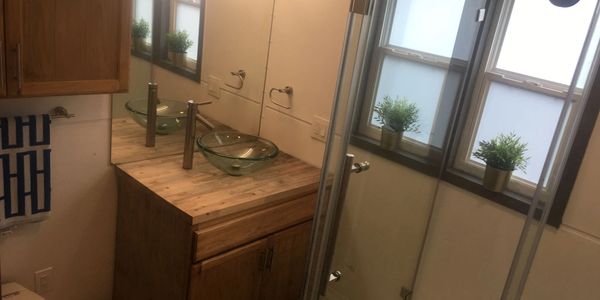

Bathroom

  • 7'-0" Ceiling Height
  • All LED lighting
  • Exhaust vent with LED light
  • 36” wall mounted linen closet
  • ADA compliant standard  flushing toilet
  • (optional) ADA compliant 48" x 36" glass shower enclosure
  • (optional) Glass vessel bathroom sink

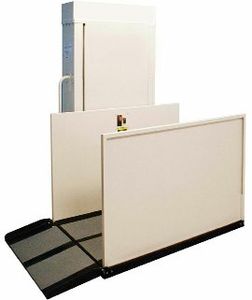

Tiny Home with Wheelchair Lift

Stairs and/or Wheelchair Lift to the Second Floor

  • Full set of stairs, NOT a ladder, to access the second floor
  • 38 SEER mini-split HVAC (heating, ventilation, air-conditioning)
  • (optional) ADA (Americans with Disabilities Act) compliant wheelchair lift (inside) and liftgate (outside)


Second Floor

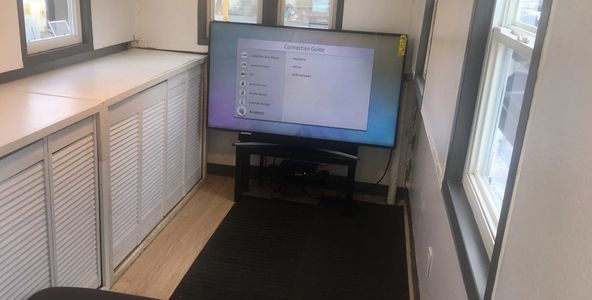

24'-0" Pop-Top Tiny Home Living Room

Living Room

  • 7'-0" Ceiling Height
  • Outlets on all walls and two (2) on ceiling
  • Ceiling mount for up to 65" TV
  • (optional) 60" Haiku intelligent fan w/ LED light
  • (optional) Full size sofa-bed

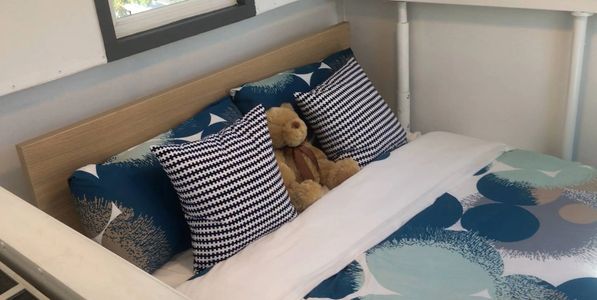

24'-0" Pop-Top Tiny Home Bedroom

Bedroom

  • 7'-0" Ceiling Height
  • Bedroom accommodates a Full, or Queen size bed
  • Outlets on all walls
  • (optional) Under bed walk-in-closet
  • (optional) Desk in under bed walk-in-closet

Eco-Friendly


Our vertically expanding Pop-Top tiny homes are eco-friendly:

All of our vertically expanding tiny homes are built out of eco-friendly materials:


  • Eco-Building Wall Panels
  • Double & Triple Pane Insulated Windows
  • Luxury Vinyl Flooring (LVF)
  • Rain Water Reclamation System
  • Solar Power System (optional)
  • No wood used in the construction of our shells


We use these materials because we strive to provide an environmentally-friendly option for our clients.

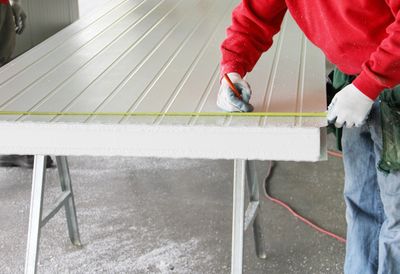

Eco-building Wall Panels:

  • do not contain CFCs or HCFCs in their manufacturing process, or in their materials.
  • are safe and incredibly environmentally-friendly, as they are either recyclable or are made from recycled content. Many competing panel products are not recyclable; instead, the waste is sent to landfills. The Eco-building wall panels we use are custom-made to order, so there is never any waste.
  • provide an R rating (thermal insulation rating) of R-17, or R-24 depending on insulation density.
  • provide an envelope that allows for zero air infiltration.
  • mold, mildew, and rot free.

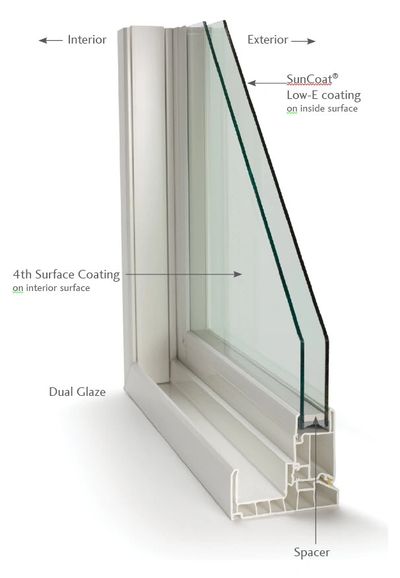

Double & Triple Pane Insulated Windows:

  • Energy efficient windows use dual or triple pane glass (or glazing) to better insulate and help reduce energy usage in the winter and protect against heat build-up during the summer.  Triple glazing adds a third layer of glass that improves insulating properties, keeping homes in northern regions warmer and southern regions cooler.
  • Argon gas-filled air space. Argon gas, used between panes, is often an option offered by top window manufacturers. It enhances thermal performance without getting in the way of the view.
  • U-Factor is a measure of heat lost and indicates how well a window can withstand heat transfer. The lower the u-factor value, the higher the insulating performance of a building element.  U-factors on windows generally range from 0.25 to 1.25.
  • Solar Heat Gain Coefficient (SHGC) measures the amount of solar radiation transmitted through a window, expressed as a number between 0 and 1. The lower the SHGC, the less solar heat the window transmits.

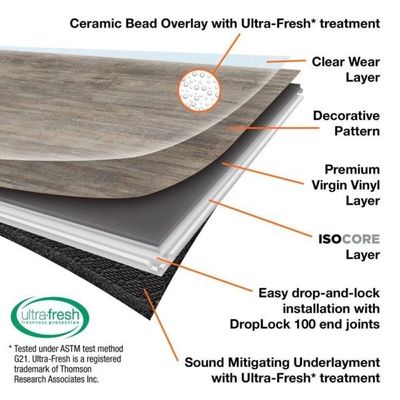

Luxury Vinyl Flooring (LVF):

  • LVF products are tested to the latest standards for Volatile Organic Compounds (VOCs), formaldehyde, phthalates, and heavy metals.
  • the standards used for the testing of phthalates and heavy metals in LVF are the same standards used for the testing of children’s toys, setting a very high bar.
  • Equally important is the fact that it is FloorScore® certified, thus ensuring it meets strict standards for indoor air quality.

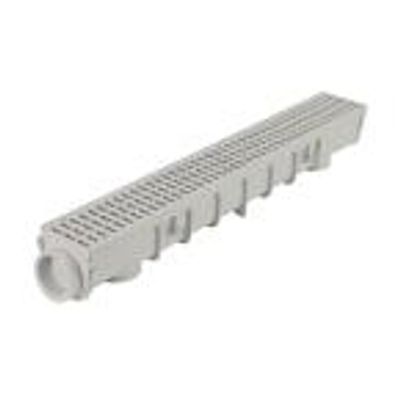

Rain Water Reclamation and Filtration System:



  • 23.6 sq. in. per linear ft. open surface area. 77 GPM per ft. flow rate
  • Rated for Class B Loads (up to 175 psi) when properly installed
  • the 3" Channel Drain, as part of a complete channel drainage system, collects and conveys water to drain pipes for proper distribution of rainwater
  • removable grates make it easy to clean debris from channel for maintenance
  • 3" Channel made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grates made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Three (3) stage particulate filter
  • UV filter for microbes and pathogens

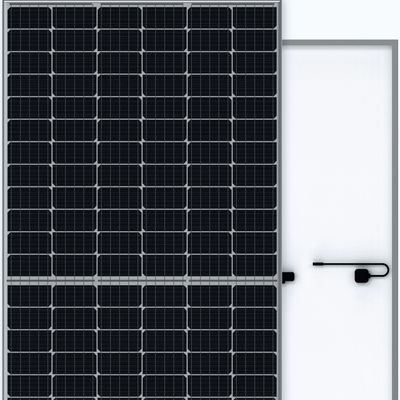

Solar Power System (optional):

Solar Panels:


  • six (6) on the 204 sf.
  • eight (8) on the 272 sf.
  • twelve (12) on the 408 sf.
  • sixteen (16) on the 544 sf.


Battery Bank:


  • 500 Ah @48 V LiFePo4 (24,000 W) with built in MPPT Charge Controller


Inverter:


  • 12 kW @ 50 A


MPPT Charge Controller:


  • two (2) on the 204 sf.
  • three (3) on the 272 sf.
  • four (4) on the 408 sf.
  • six (6) on the 544 sf.

Lightweight


Our vertically expanding Pop-Top tiny homes are extremely lightweight:

All of our vertically expanding tiny homes weigh under 10,000 lbs.:


  • our 204 square foot Pop-Top tiny homes weigh 4,500 lbs.
  • our 272 square foot Pop-Top tiny homes weigh 5,400 lbs.
  • our 408 square foot Pop-Top tiny homes weigh 7,900 lbs.
  • our 544 square foot Pop-Top tiny homes weigh 9,600 lbs.


*all of these are dry weights.


Each of our Pop-Top tiny homes have multiple 100 gallon tanks on-board. They have three (3), four (4), six (6), and eight (8) tanks respectively. This adds:


  • 834 lbs. to the 204 square foot Pop-Top tiny homes
  • 1,668 lbs. to the 272 square foot Pop-Top tiny homes
  • 2,502 lbs. to the 408 square foot Pop-Top tiny homes
  • 3,336 lbs. to the 544 square foot Pop-Top tiny homes


*when tanks are full

Multiple Chemical Sensitivity (MCS)


We build our vertically expanding tiny homes to a standard that most with MCS would find welcoming!

In the construction of our tiny homes, we typically use:

Non-wood Items:


  • glass bath sink
  • glass shower enclosure w/ fiberglass shower pan
  • no VOC paint (the only paint that we apply is on the steel frames. the SIPs come with paint baked on at factory)
  • rubber base
  • stainless steel bath faucet
  • stainless steel hardware
  • stainless steel kitchen faucet
  • stainless steel kitchen sink
  • steel Structural Insulated Panels (SIPs)
  • steel door (hollow)
  • steel door frames
  • steel posts for handrail
  • steel stair stringers
  • steel sub-flooring
  • steel window frames
  • vinyl windows


Wood Items:


  • birch door (solid-core)
  • birch butcher block countertops
  • birch handrails
  • hardwood cabinets
  • oak flooring
  • oak stair treads

Here is some information about the steel SIPs that we use for the shells of our tiny homes:

  • Indoor Environmental Quality (IEQ):


                    a. IEQ Credit 4.1: Low-Emitting Materials, Adhesives and Sealants: Product data on adhesives and

                    sealants to comply with standards of South Coast Air Quality Management District Rule #1168.

                    b. Product data for paint and coatings have no VOC's.


  • Insulation:


                    Insulation shall not contain CFC’s or HCFC’s, or other expanding agents, resulting in zero ODP and

                    zero VOC production.


  • Interior/Exterior Face:


                   Interior/exterior insulated panels shall be clad with 26 gauge (0.455 mm) pre-painted G90 galvanized

                   steel or AZ-50 Galvalume (USDA accepted).


  • Interior/Exterior Finishes:


                   USDA approved Siliconized Polyester Paint System if Metal


  • Thermal Performance:


                   Panels shall produce no post manufacturing off gassing which could result in loss of future thermal

                   resistance and must have a certified Long Term R- Value (LTR).

Videos

Interior walk-through of a 408 ft.² (24'-0" x 8'-6") Pop-Top Tiny Home

Exterior walk-around of our 408 ft.² (24'-0" x 8'-6") Pop-Top Tiny prototype

Photo Gallery

Price List

204 ft.² (12'-0" x 8'-6") Pop-Top Tiny Homes

Our 204 ft.² (12'-0" x 8'-6") tiny homes are fully customizable, but as a general rule the pricing is:

Well Equipped Shell

$29,999

  • Includes all built-in lighting, switches, outlets, plumbing, and HVAC connections
  • One (1) 100 gallon tank for fresh water storage, and two (2) 100 gallon tanks for waste water storage
  • No appliances, cabinets, surface-mounted fixtures, or accessories
  • Ready for you to add your own style

Minimally Equipped

$34,999

  • Standard white appliances
  • Formica counter tops
  • Shaker style cabinets with standard cabinet pulls
  • Standard bath fixtures and accessories
  • Standard flushing toilet
  • Standard mini-split

Moderately Equipped

$39,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • 38 SEER mini-split
  • Remote controlled operation

Fully Loaded

$69,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • 38 SEER mini-split
  • Remote controlled operation
  • Solar power collection (via six (6) 330 W solar panels)
  • 24,000 W power storage (via 500 Ah @ 48 V LiFePo4 Batteries)
  • Rainwater collection
  • Water filtration system with UV filter


272 ft.² (16'-0" x 8'-6") Pop-Top Tiny Homes

Our 272 ft.² (16'-0" x 8'-6") tiny homes are fully customizable, but as a general rule the pricing is:

Well Equipped Shell

$39,999

  • Includes all built-in lighting, switches, outlets, plumbing, and HVAC connections
  • Two (2) 100 gallon tank for fresh water storage, and two (2) 100 gallon tanks for waste water storage
  • No appliances, cabinets, surface-mounted fixtures, or accessories
  • Ready for you to add your own style

Minimally Equipped

$44,999

  • Standard white appliances
  • Formica counter tops
  • Shaker style cabinets with standard cabinet pulls
  • Standard bath fixtures and accessories
  • Standard flushing toilet
  • Standard mini-split

Moderately Equipped

$49,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • 38 SEER mini-split
  • Remote controlled operation

Fully Loaded

$79,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • 38 SEER mini-split
  • Remote controlled operation
  • Solar power collection (via eight (8) 330 W solar panels)
  • 24,000 W power storage (via 500 Ah @ 48 V LiFePo4 Batteries)
  • Rainwater collection system
  • Water filtration system with UV filter


408 ft.² (24'-0" x 8'-6") Pop-Top Tiny Homes

Our 408 ft.² (24'-0" x 8'-6") tiny homes are fully customizable, but as a general rule the pricing is:

Well Equipped Shell

$59,999

  • Includes all built-in lighting, switches, outlets, plumbing, and HVAC connections
  • Three (3) 100 gallon tank for fresh water storage, and three (3) 100 gallon tanks for waste water storage
  • No appliances, cabinets, surface-mounted fixtures, or accessories
  • Ready for you to add your own style

Minimally Equipped

$64,999

  • Standard white appliances
  • Formica counter tops
  • Shaker style cabinets with standard cabinet pulls
  • Standard bath fixtures and accessories
  • Standard flushing toilet
  • Two (2) Standard mini-splits

Moderately Equipped

$69,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • Two (2) 38 SEER mini-splits
  • Remote controlled operation

Fully Loaded

$99,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets w/ stainless steel cabinet pulls
  • Stainless steel bath fixtures & accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • Two (2) 38 SEER mini-split
  • Remote controlled operation
  • Solar power collection (via twelve (12) 330 W solar panels)
  • 24,000 W power storage (via 500 Ah @ 48 V LiFePo4 Batteries)
  • Rainwater collection
  • Water filtration system with UV filter


544 ft.² (32'-0" x 8'-6") Pop-Top Tiny Homes

Our 544 ft.² (32'-0" x 8'-6") tiny homes are fully customizable, but as a general rule the pricing is:

Well Equipped Shell

$79,999

  • Includes all built-in lighting, switches, outlets, plumbing, and HVAC connections
  • Four (4) 100 gallon tank for fresh water storage, and four (4) 100 gallon tanks for waste water storage
  • No appliances, cabinets, surface-mounted fixtures, or accessories
  • Ready for you to add your own style

Minimally Equipped

$84,999

  • Standard white appliances
  • Formica counter tops
  • Shaker style cabinets with standard cabinet pulls
  • Standard bath fixtures and accessories
  • Standard flushing toilet
  • Two (2) Standard mini-splits

Moderately Equipped

$89,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets with stainless steel cabinet pulls
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • Two (2) 38 SEER mini-splits
  • Remote controlled operation

Fully Loaded

$119,999

  • High-end stainless steel smart appliances
  • Butcher block countertops
  • Shaker style cabinets w/ stainless steel cabinet pulls
  • Stainless steel bath fixtures & accessories
  • Sliding glass door shower
  • Standard flushing toilet
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • Two (2) 38 SEER mini-splits
  • Remote controlled operation
  • Solar power collection (via sixteen (16) 330 W solar panels)
  • 24,000 W power storage (via 500 Ah @ 48 V LiFePo4 Batteries)
  • Rainwater collection
  • Water filtration system with UV filter


A la Carte

Choose individual options for your tiny home

Appliances, Fixtures, and Accessories (Standard)

$1,999

  • White appliances
  • Standard bath fixtures and accessories
  • Standard ceiling fan
  • Standard mini-split

Appliances, Fixtures, and Accessories (High-End)

$6,999

  • Stainless steel smart appliances
  • Stainless steel bath fixtures and accessories
  • Sliding glass door shower
  • Stainless steel washer/dryer combo
  • 60" Haiku ceiling fan
  • 38 SEER mini-split

Butcher Block Countertops

$1,199

  • Butcher block countertops for kitchen
  • Butcher block countertops for bathroom
  • Butcher block countertops for fold down table

Cabinets & Pantry (Shaker Style)

$2,499

  • All hardwood construction
  • Two (2) options to choose from; white, or grey
  • Soft close hinges and drawer slides.

Rainwater Collection and Filtration System

$1,999

  • 96" x 4" x 4" drain built into roof.
  • Three (3) stage particulate filtration
  • UV filtration

Solar Power Production and Storage

$29,999

  • Six (6), eight (8), twelve (12), or sixteen (16) 330 W solar panels
  • 500 Ah @ 48 V LiFePo4 battery bank with built-in charge controller
  • Two (2) external charge controllers
  • 12kW pure sine wave inverter

Under Bed Walk-in-Closet

$1,499

  • Bed tilts upwards and reveals walk-in-closet underneath
  • 7'-0" rod for hanging clothes
  • Two (2) cabinets for storing clothes
  • Shelving for storing shoes and accessories

Desk for Under Bed Walk-in-Closet

$349

  • Substitute for small side cabinets and a middle desk drawer

Extra Bedroom

$1,499

  • Add a bedroom to your 408 ft.², or 544 ft.² vertically expanding tiny home

Outdoor Closet

$2,499

  • Add a 6'-0" x 6'-0" x 8'-6" (18 square foot) 11'-6" tall outdoor closet to your vertically expanding tiny home
  • Overhead light
  • Steel door and door frame
  • Fold-down steps

Extra Bathroom

$4,999

  • Add a bathroom to your 408 ft.², or 544 ft.² vertically expanding tiny home. Includes standard appliances and fixtures (Upgrades available at additional cost)

Generator with Noise Reducing Enclosure

$2,199

  • generator with 50 Amp outlet
  • noise reducing enclosure with intake and exhaust fans

Financing

Subscribe

Contact Us

Get A Free Quote

We strive to be in constant communication with our customers until the job is done. To get a free quote, if you have questions or special requests, just drop us a line. We look forward to serving you!

Pop-TopTiny Home, LLC

Atlanta, Georgia

(954) 806-9856

Hours

Monday - Friday: 9am - 5pm (Best By Appointment)

Saturday: Closed (By Appointment Only)

Sunday: Closed

Copyright © 2018 Pop-TopTiny Home, LLC - All Rights Reserved.


Powered by GoDaddy Website Builder
